Interactive Display Avw-5555 - 55in LED - 3840 X 2160 4k Uhd - Black With Touchscreen (multi Touch) / Camera

Introduction

The Avocor AVW-5555 is an all-in-one video conferencing touch display that enhances collaboration and productivity. Featuring built-in loT Digital Twins sensors, the W series measures environmental data that can be analyzed, in real-time, using the Avocor Aquarius WorkSpace Intelligence platform - offering a simple way to gain valuable analysis about meeting room utilization. The single Type-C cable solution combines an integrated, high-quality conference camera, 40W conference room audio and far-field microphone array, optimized for use with UC platforms such as Microsoft Teams and Zoom, creating a seamless video collaboration environment. The AVW-5555 also features an OPS slot allowing for 4k video@60Hz.

Get meetings started quickly
The single Type-C cable solution delivers a frustration free-user experience to get meetings started quickly and simply. Smart switching ensures that there is no more struggling to find input sources. The cable provides hardwire ethernet connection and powers the connected device at the same time. When the device leaves the room, so does the on-screen content.

The ultimate video collaboration environment

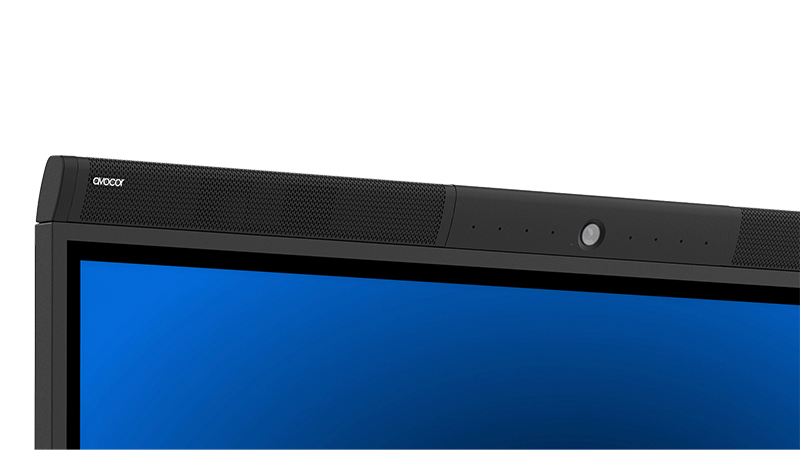

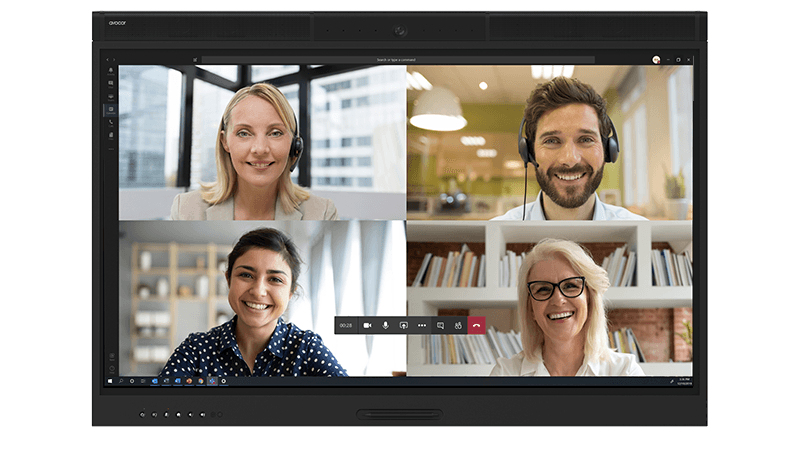

Connect and engage with colleagues regardless of location through the integrated, conference-grade camera and stereo speakers. The active, far-field microphone array allows the display to connect with a variety of UC based software, delivering the ultimate video collaboration environment for the focus room.

Microsoft Azure certified
Built-in sensors that connect to Azure loT Digital Twins platform, measuring environmental data such as room temperature and ambient light, enabling real-time adjustments and future room planning.

Encryption-level security using Azure Sphere
Azure Sphere is a secured, high-level application platform with built-in communication and security features for internet-connected devices.

Pixel perfect zero parallax glass
Enjoy 4K screen resolution with the latest generation of FlatFrogT touch technology that delivers an exceptionally smooth, highly responsive touch experience using the zero parallax glass that is pixel perfect.

Brand new 55" display
Avocor's all-in-one 55" display is out-of-the-box ready for collaboration and videoconferencing in focus rooms, executive offices and home offices.

Features

Display diagonal

139.7 cm (55")

Display brightness

500 cd/m²

Display resolution

3840 x 2160 pixels

Contrast ratio (typical)

4000:1

Response time

8 ms

Touchscreen

Y

Touch technology

Multi-touch

Number of simultaneous touchpoints

20

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Product colour

Black

Screen glass thickness

3 mm

Performance

Proximity sensor

Y

Temperature sensor

Y

Remote control included

Y

Projector

Aspect ratio

16:9

Ports & interfaces

Ethernet LAN

Y

USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity

2

HDMI ports quantity

2

USB Type-C ports quantity

1

HDMI version

2.0

DisplayPort version

1.4

DisplayPorts quantity

1

Ethernet LAN (RJ-45) ports

2

Infrared data port

Y

S/PDIF out port

Y

RS-232 ports

1

Audio

Built-in speaker(s)

Y

Number of built-in speakers

4

Speaker power

10 W

Ergonomics

VESA mounting

Y

Panel mounting interface

400 x 400 mm

Power

Power consumption (max)

310 W

Power consumption (standby)

0.5 W

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 80%

Storage temperature (T-T)

-20 - 60 °C

Weight & dimensions

Width

1280 mm

Depth

102 mm

Height

863 mm

Weight

45.3 kg

Packaging data

Package width

1495 mm

Package depth

260 mm

Package height

1026 mm

Package weight

59.2 kg

Packaging content

Cables included

AC, HDMI, USB

Stylus included

Y

Batteries included

Y

Quick start guide

Y
