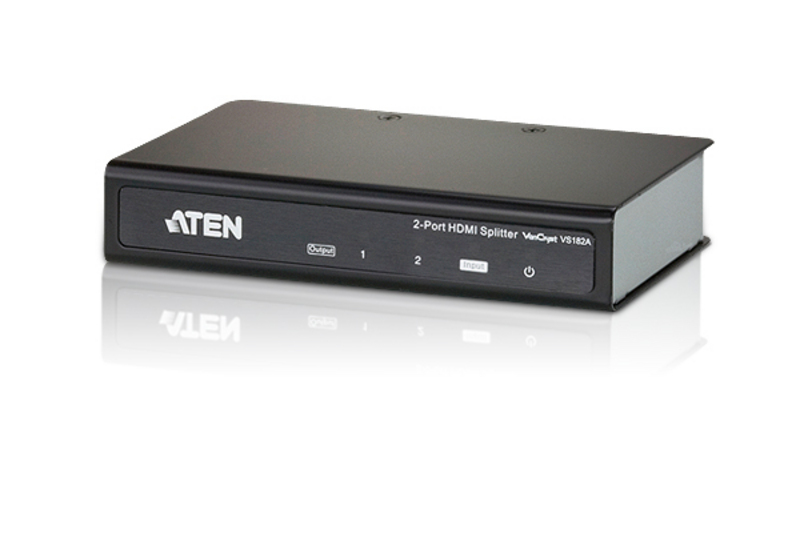

2-port Hdmi Audio/video Splitter 4kx2k

Introduction

The VS182A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to two displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.

The VS182A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.

Ports & interfaces

Video port type

HDMI

Video out

2x HDMI

Video ports quantity

3

DC-in jack

Y

Features

Product colour

Black

Housing material

Metal

Maximum resolution

4096 x 2160 pixels

HD type

4K Ultra HD

3D

Y

Maximum operating distance

15 m

Maximum refresh rate

60 Hz

Bandwidth

340 MHz

HDCP version

1.4

HDCP

Y

Plug and Play

Y

LED indicators

Y

Dolby technologies

DTS-HD Master Audio,Dolby TrueHD

Power

AC input voltage

5 V

Power consumption (typical)

3.12 W

Weight & dimensions

Width

80 mm

Depth

125 mm

Height

25 mm

Weight

504 g

Packaging data

Quantity per pack

1 pc(s)

Package width

59 mm

Package depth

239 mm

Package height

160 mm

Package weight

642 g

Packaging content

Manual

Y

Cables included

HDMI

AC adapter included

Y

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Storage relative humidity (H-H)

0 - 80%

Logistics data

Master (outer) case net weight

10.1 kg

Master (outer) case width

315 mm

Master (outer) case length

490 mm

Master (outer) case height

338 mm

Master (outer) case gross weight

13.3 kg

Products per master (outer) case

20 pc(s)
