KVM Switch 17in LCD Combo 16 Port W/ 16 USB KVM

Introduction

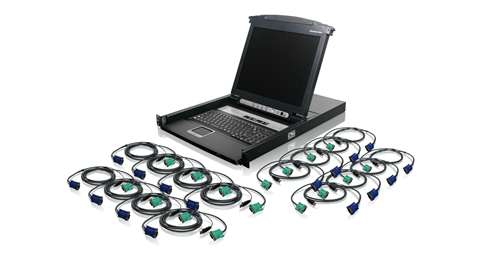

IOGEAR’s GCL1816KITU is an integrated LCD console and 16 port KVM (keyboard, video, and mouse) switch with bundled USB KVM cables that offers secure access to 16 VGA, USB computers. It features a convenient rack mountable sliding / retractable 17" TFT LCD active matrix monitor and keyboard with built-in touchpad for a space-saving and streamlined integration. For added convenience it also supports an external USB mouse. An extra USB / PS/2 console port is provided on the rear panel to manage the LCD KVM switch from an external console (monitor, keyboard, and mouse). All this in a universal 1U rack mount space.

The GCL1816KITU supports both PS/2 and USB keyboards and mice for the connected computers, and the GCL1816KITU supports USB** peripheral devices to be used for system upgrades with the attached computers. A single GCL1816KITU can control up to 16 computers. As many as 16 additional compatible KVM switches can be cascaded to reach up to 256 computers* controlled from a single keyboard, monitor, and mouse console with easy computer switching via front LED pushbuttons, OSD, and hotkeys.

Benefits:

- Equipped with USB KVM Cables
- 8 x 6ft USB (G2L5202U)
- 8 x 10ft USB (G2L5203U)
- Increases space, productivity, and provides as an energy cost savings solution
- It contributes to a greener environment by reducing the amount of waste generated by multiple components
- An easy / efficient way to organize and streamline a growing or expanding server operation

*Cascade with other IOGEAR KVM’s; GCS1808’s or GCS1716’s.
**Only systems connected with the USB KVM cables will be able to access the front USB port for system upgrades and shared peripherals

- Integrated 16-port KVM console featuring a 17" TFT LCD active matrixmonitor, keyboard and touchpad
- 1280 x1024 resolutionon 17" rack mountLCD provides asharpvideo display
- Equipped with16 USB KVM Cables
- Adjustable depth to fit different sizes of racks
- Multi platform OS support - Windows®, Mac, Sun Solaris™ , and Linux®
- Easy to operate - computer selection via front panel pushbutton LED’s, intuitive OSD (on screen display), and hotkeys
- External USB mouse port for convenience
- External USB or PS/2 withVGAConsole port
- USB media port support for attached USB computers (system upgrades, etc)**
- Cascade up to 2 levels - control up to256 computers from a single console*
- Security - 2 level password protection for OSD
- DDC Emulation - Video settings of each computer are automatically adjusted for optimal output to the monitor
- Rack mountable in a 19" (1U) system rack
- Custom ASIC provides an auto-sensing function that recognizes the position of each station on the installation
- Fully Supports DDC2B

*Cascade with IOGEAR 8/16-Port VGA Combo KVM Switch (Model No. GCS1808 and GCS1716)
**Only systems connected with the USB KVM cables will be able to access the front USB port for system upgrades and shared peripherals

Ports & interfaces

Keyboard port type

USB, PS/2

Mouse port type

USB, PS/2

Video port type

VGA

Design

Product colour

Black

LED indicators

Y

Display

Display

LCD
