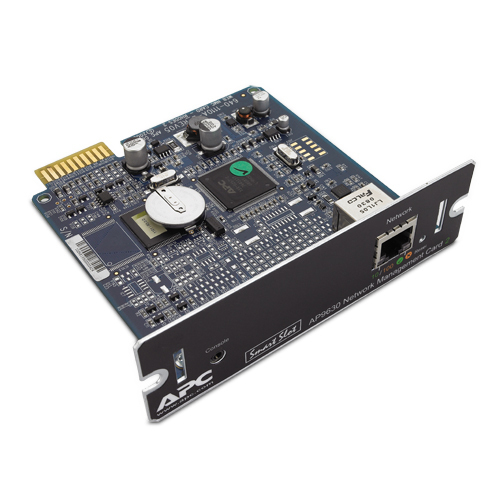

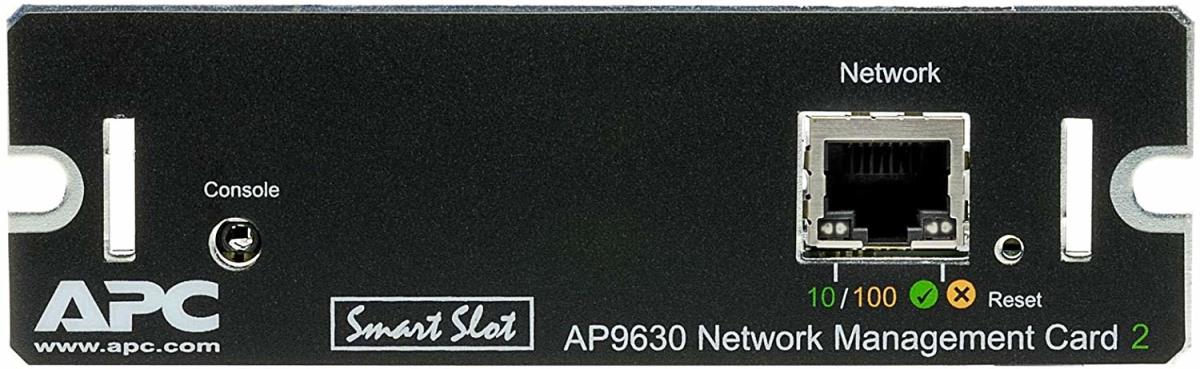

UPS Network Management Card 2

Introduction

APC UPS Network Management Cards allow for secure monitoring and control of an individual APC UPS via web browser, command line interface, or SNMP. The configurable notification features keep you informed of problems as they occur. For protected servers, the included PowerChuteTM Network Shutdown software provides graceful, unattended shutdown in the event of an extended power outage, always keeping business information safe.

Protection

Password security
User-selectable password protection prevents unauthorized access, authorized against LDAP and Active Directory servers.

PowerChute Network Shutdown
Reliable network-based shutdown of multiple servers

Radius support
Use an existing radius server to securely authenticate, authorize, and account for your APC device.

Multi-tier user access
Supports up to four access levels - Administrator, Device User, Read-Only User and Network-only User - with user name and password requirements.

Manageability

Notification
Be notified of problems to ensure crucial situations are dealt with in a timely manner.

Data logging
Identify problematic trends before they escalate or export the data log for analysis.

Scheduling
Customize shut down and reboot of connected equipment and UPSs.

Integrates with StruxureWare Data Center Expert
An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network

Event logging
Pinpoint the timing and sequence of events leading up to an incident with the event log.

Enterprise management system compatible
Make device information available to your preferred enterprise management system by forwarding SNMP traps (events) across SNMPv1, SNMPv2 and SNMPv3 using the PowerNet MIB

Ports & interfaces

Host interface

SmartSlot

Ethernet LAN (RJ-45) ports

1

Network

Ethernet interface type

Fast Ethernet

Ethernet LAN data rates

10,100 Mbit/s

Cabling technology

10/100BaseT(X)

Security algorithms

SNMP

Supported network protocols

HTTPS, HTTP, Telnet, SMTP, TCP/IP

Design

Certification

AS/NZS 3548 (C-Tick) A, EN 55022 A, EN 55024, FCC Part 15 A, GOST, ICES-003, VCCI A

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-5 - 45 °C

Operating relative humidity (H-H)

0 - 95%

Storage relative humidity (H-H)

0 - 95%

Sustainability

Sustainability certificates

RoHS

Weight & dimensions

Width

121 mm

Depth

114 mm

Height

38 mm

Weight

80 g

Packaging data

Package width

235 mm

Package depth

159 mm

Package height

51 mm

Package weight

340 g

Packaging content

Manual

Y

Other features

Product type

Network management card
