Rack Pdu Basic Zerou12.5kw 208v (30)c13 (6)c19 3 Cord

Introduction

-Includes: Cord retention bracket(s), Documentation CD, Installation guide, Rack Mounting brackets, Toolless Mounting Kit.
-Multi-branch power input.
-Toolless mounting capability.
-Vertical mounting capability.

Design

Product colour

Black

Ports & interfaces

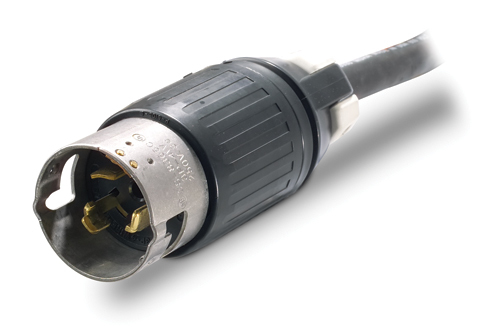

Input connection type

Hubbell CS8365C

Output connections

-(30) IEC 320 C13. -(6) IEC 320 C19.

Features

Cable length

0.91 m

Certification

cUL,CSA C22.2 No. 60950-1-03,UL 60950-1,UL

Power

Nominal input voltage

208 V

Nominal output voltage

208 V

Load capacity

12500 VA

Maximum input current per phase

35 A

Maximum total current draw per phase

35 A

Weight & dimensions

Dimensions (WxDxH)

56 x 89 x 1778 mm

Weight

6.95 kg

Operational conditions

Operating temperature (T-T)

-5 - 45 °C

Storage temperature (T-T)

-25 - 65 °C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%
