Portable USB-C Monitor - I1601FWUX - 16in - 1920x1080 (Full HD) - 5ms IPS

Introduction

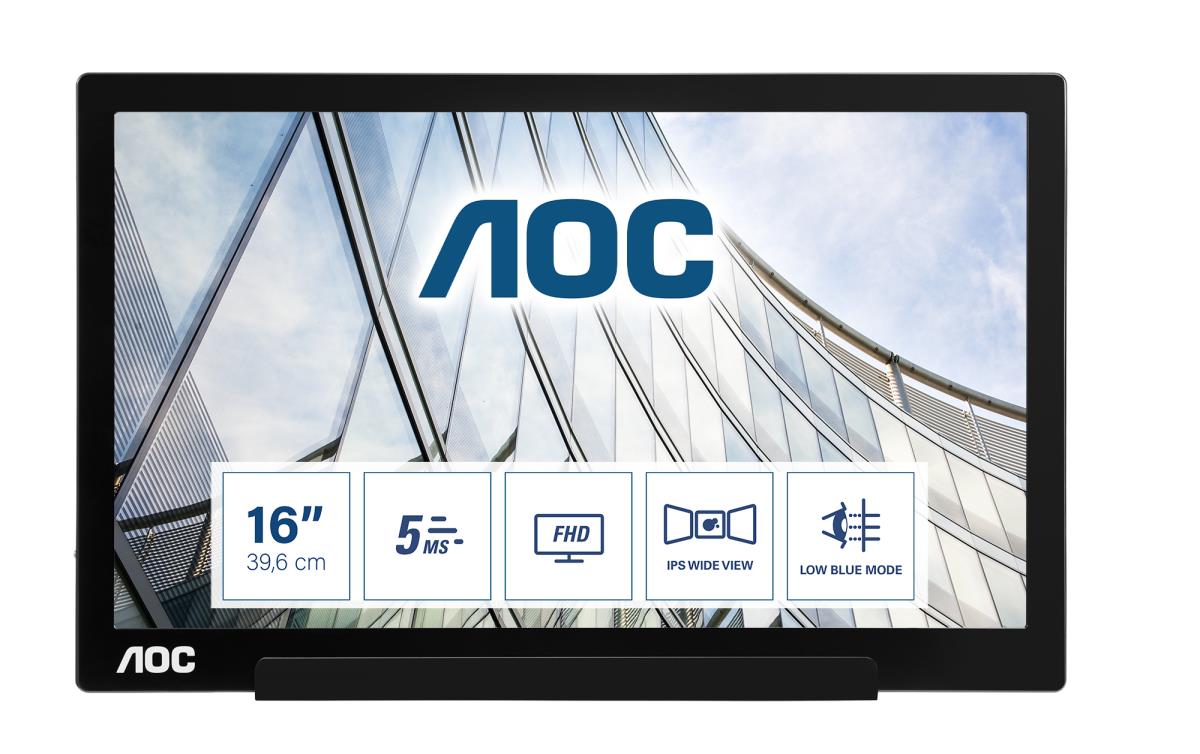

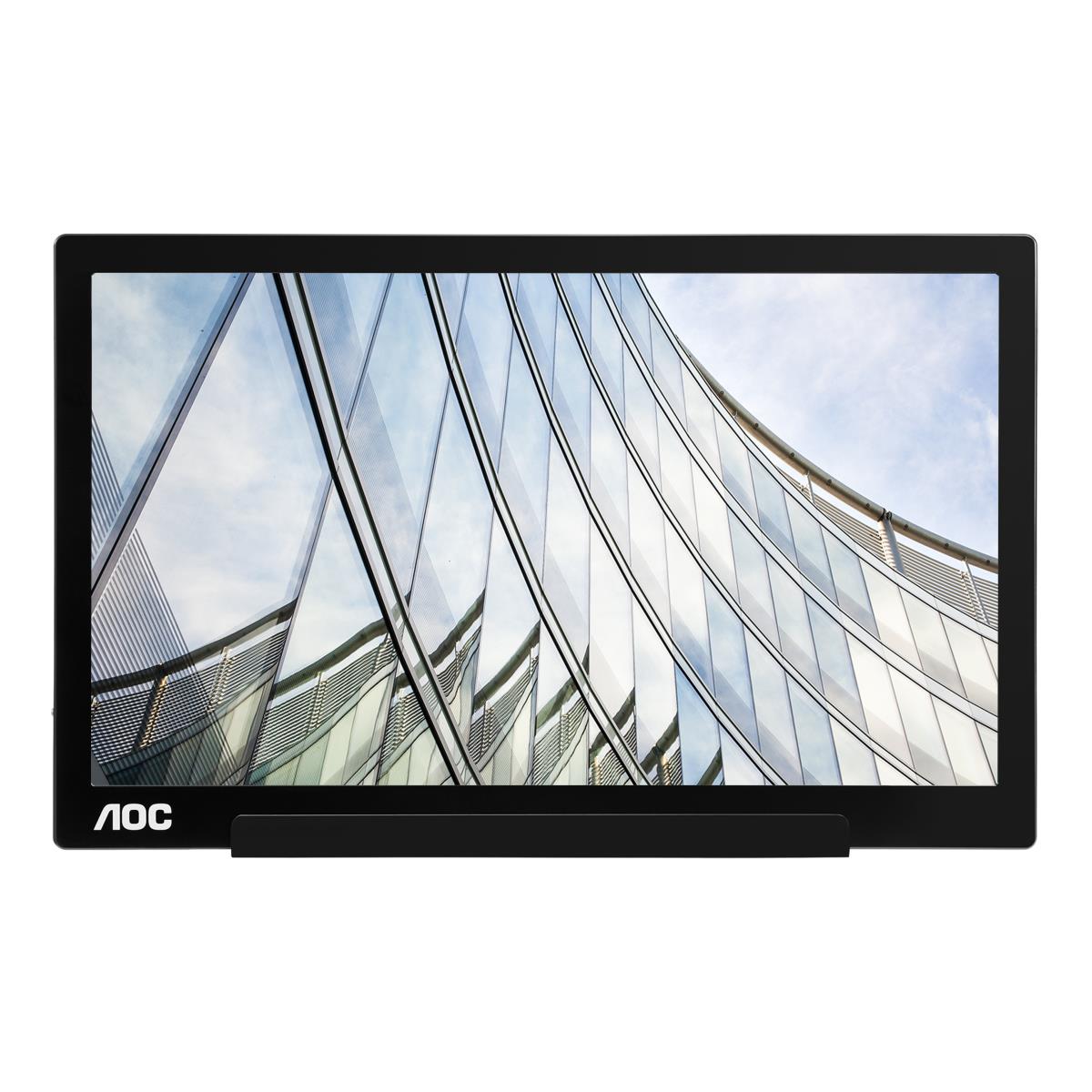

15.6” Full HD portable IPS display with USB-C connectivity

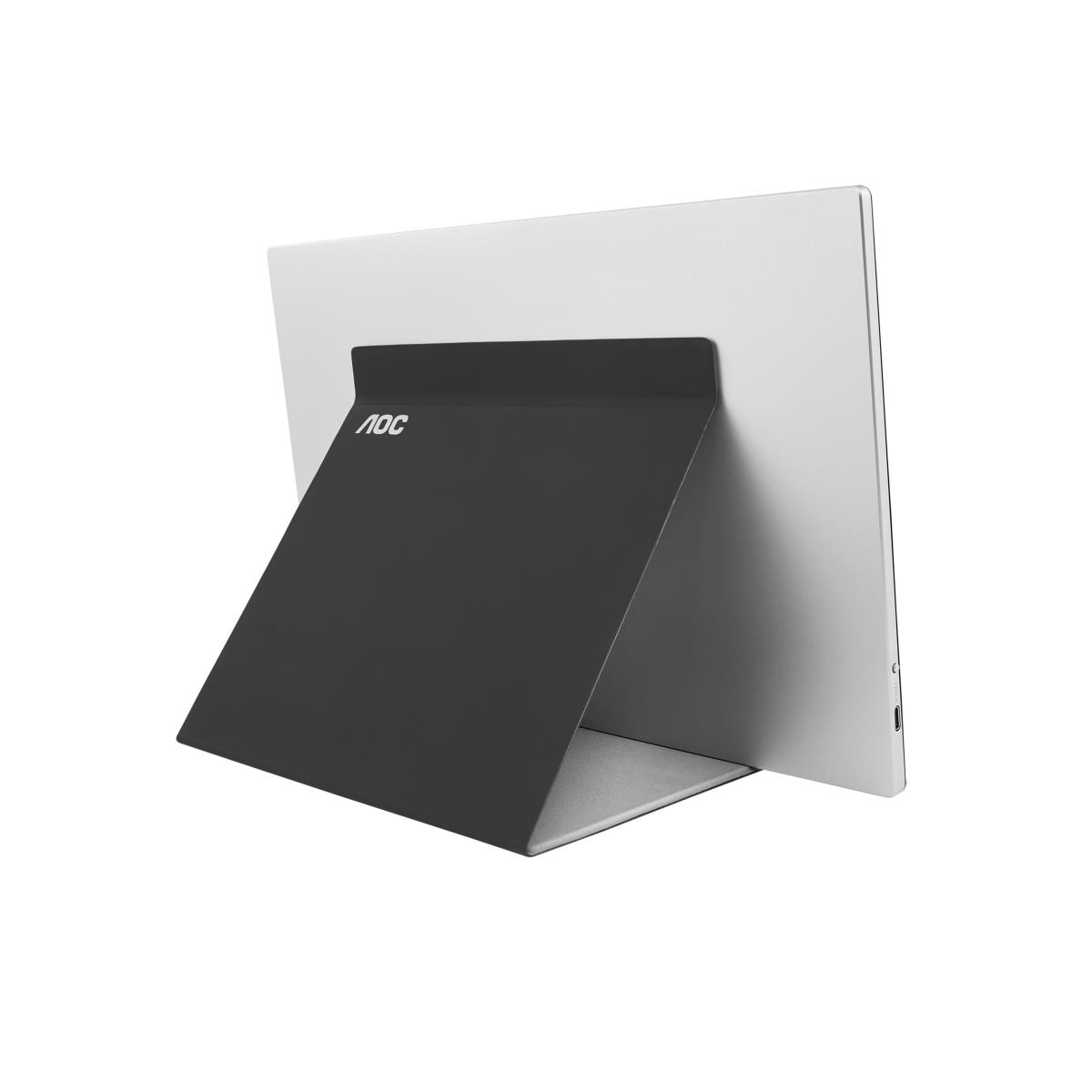

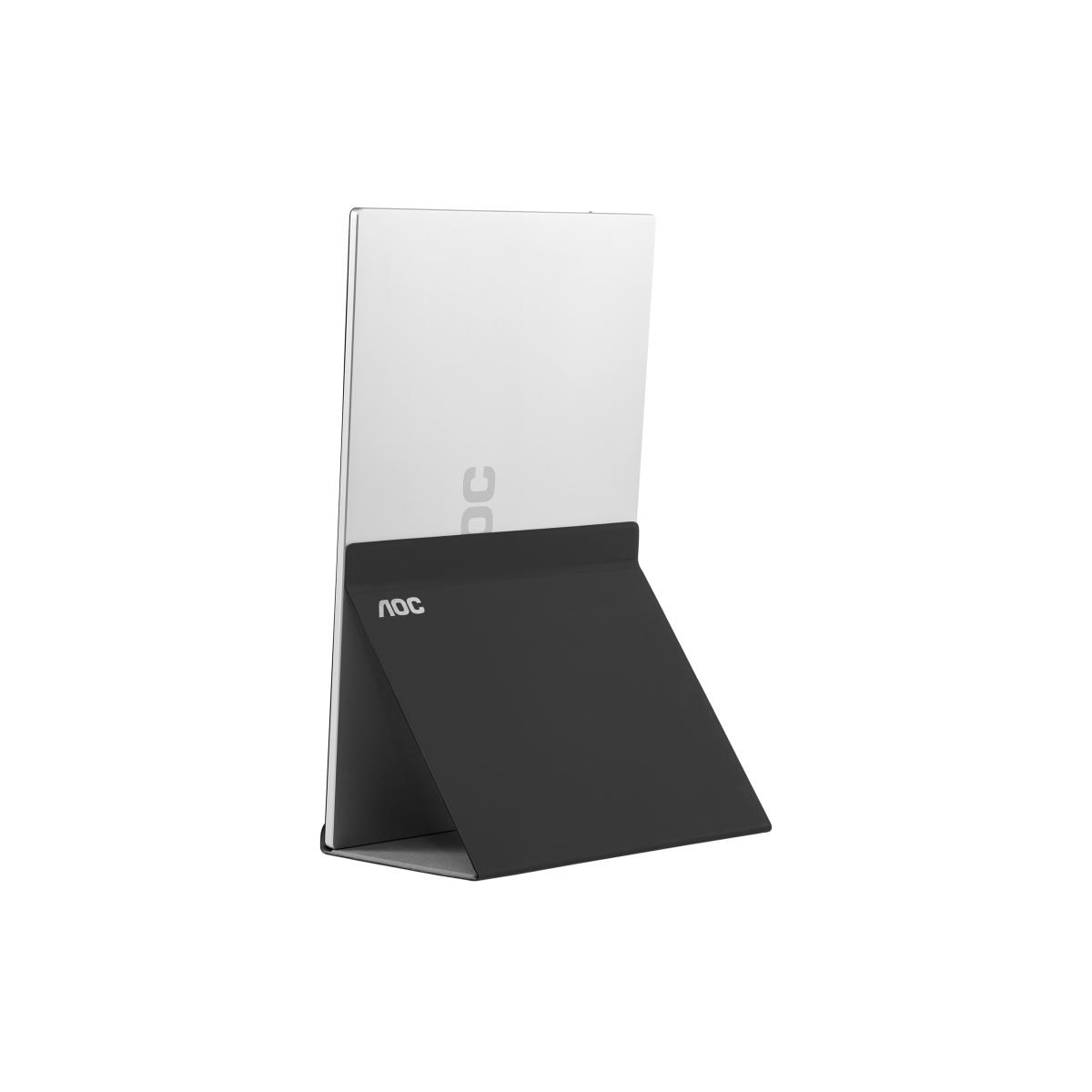

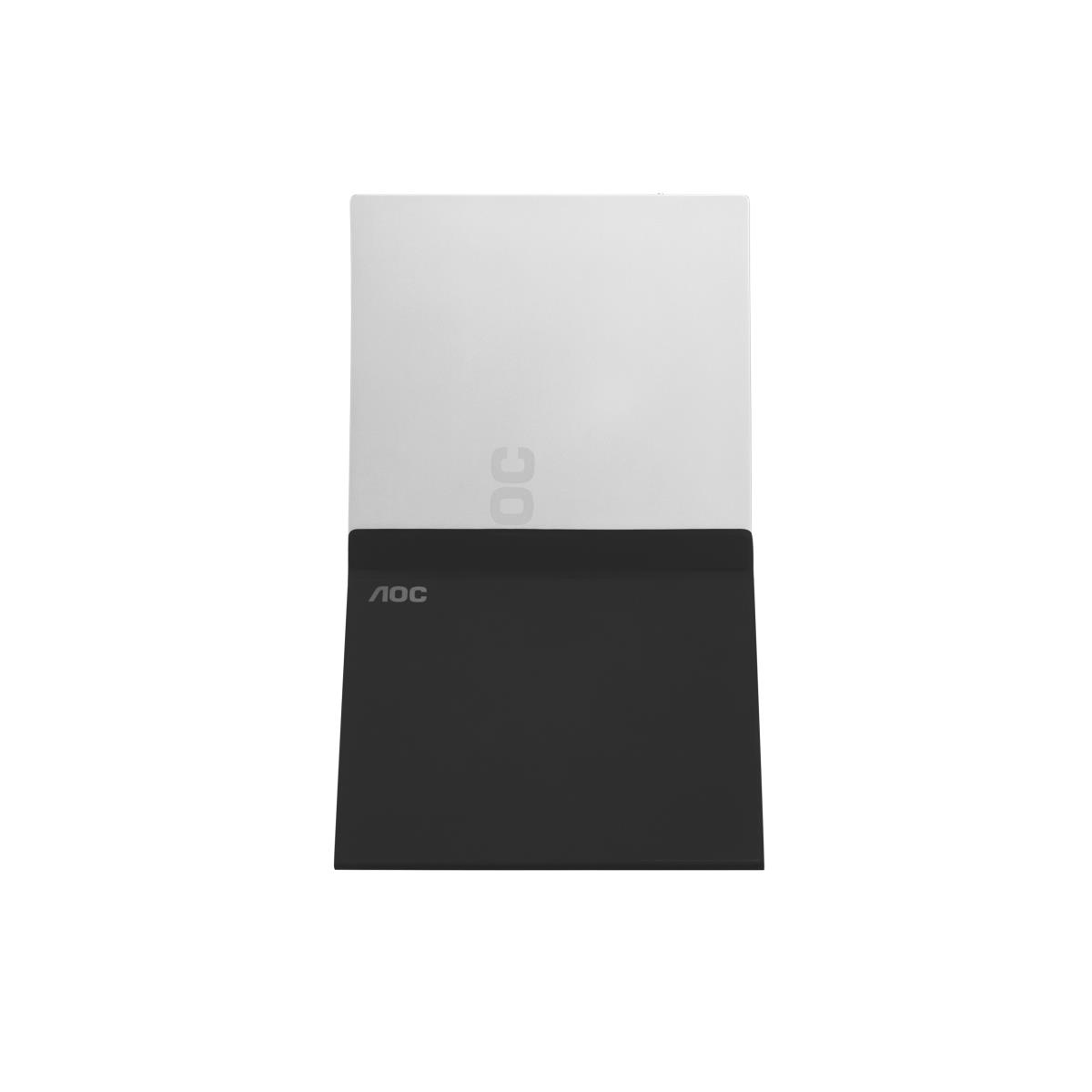

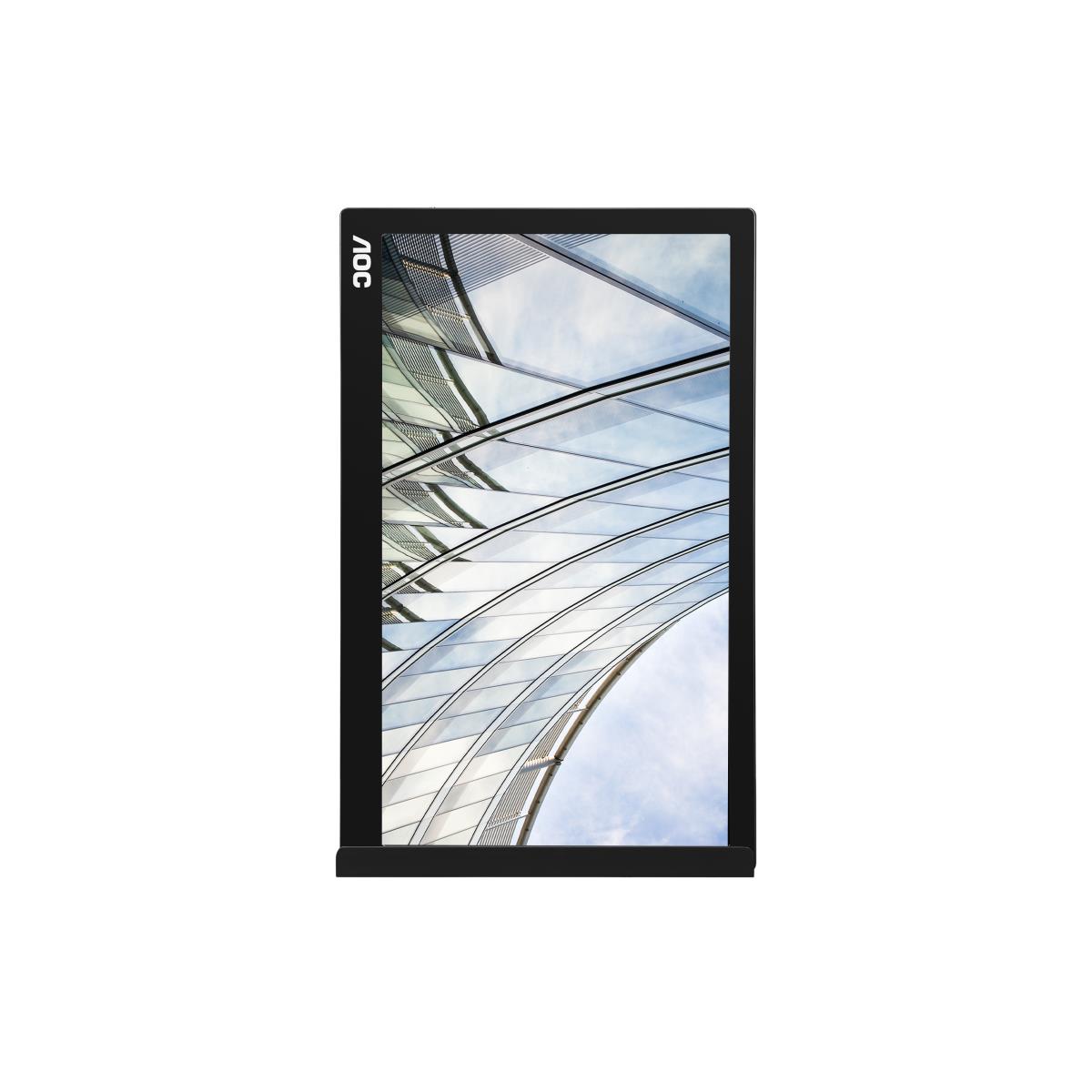

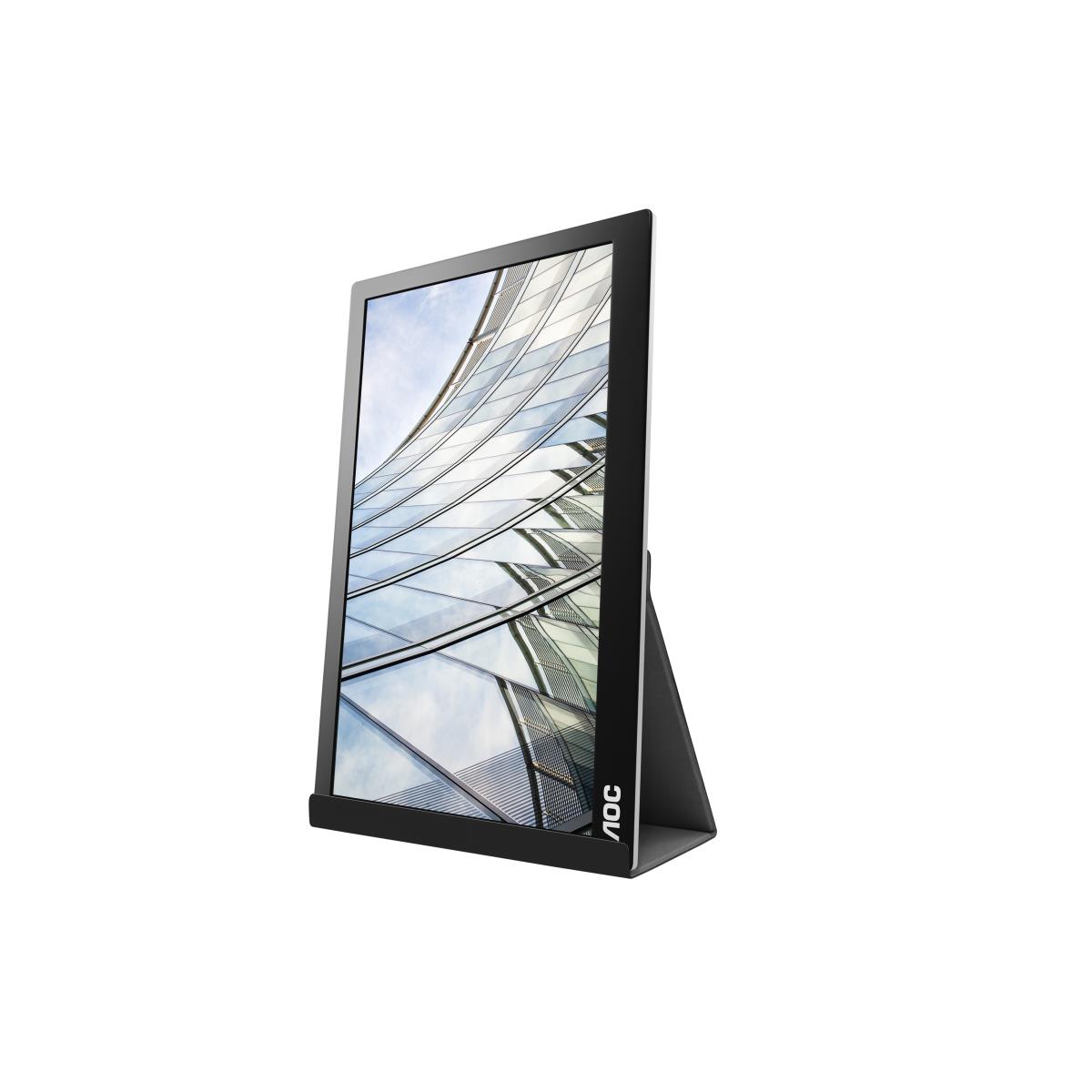

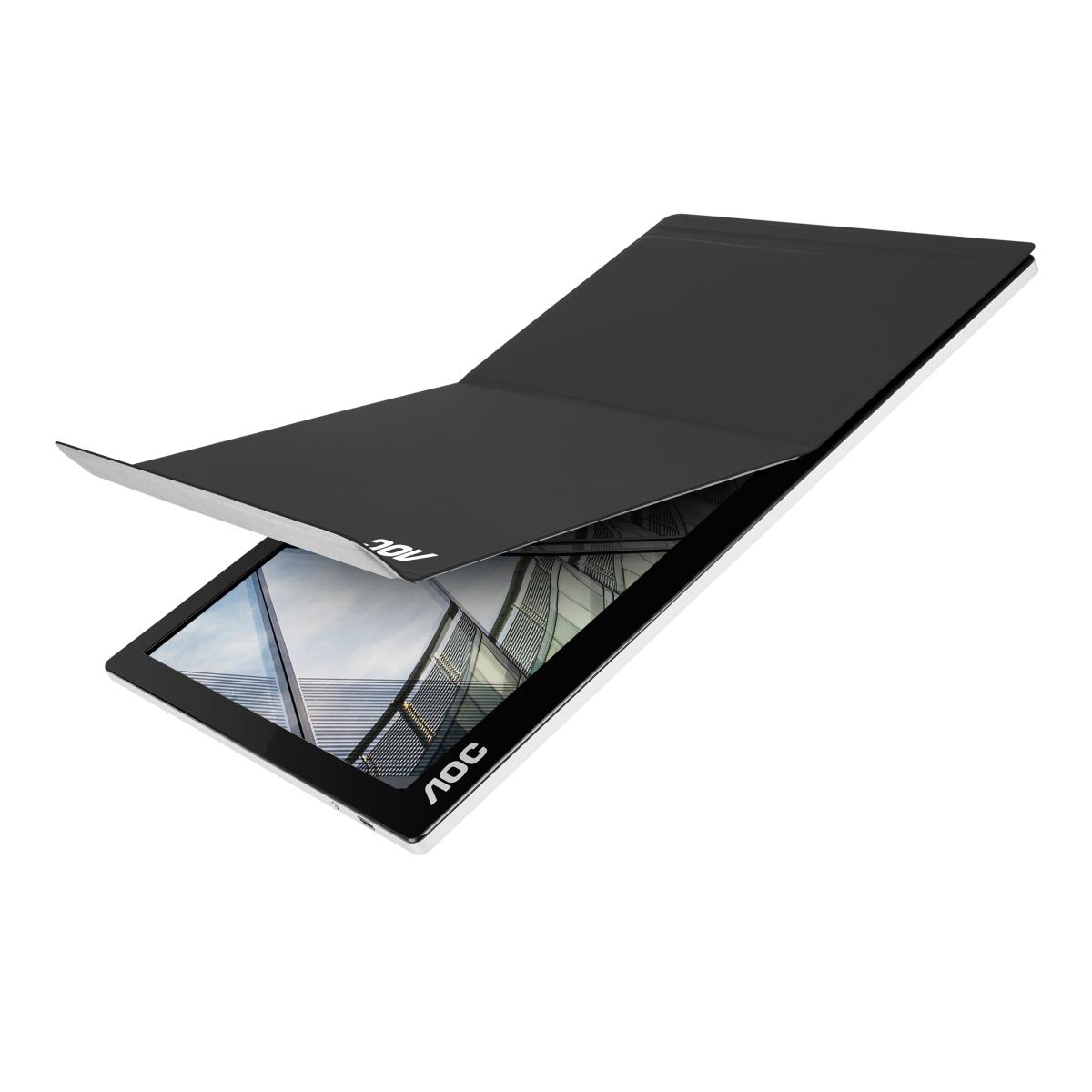

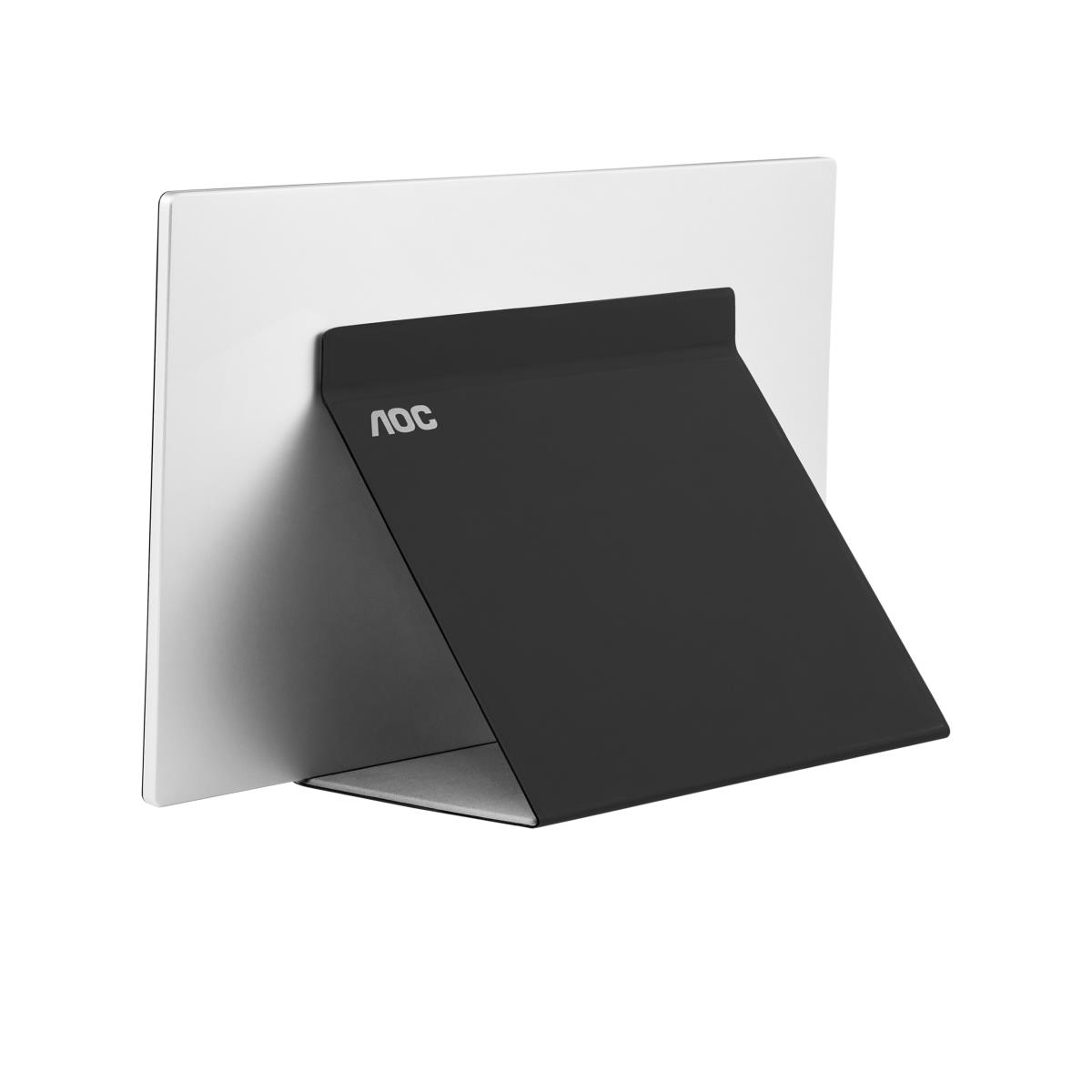

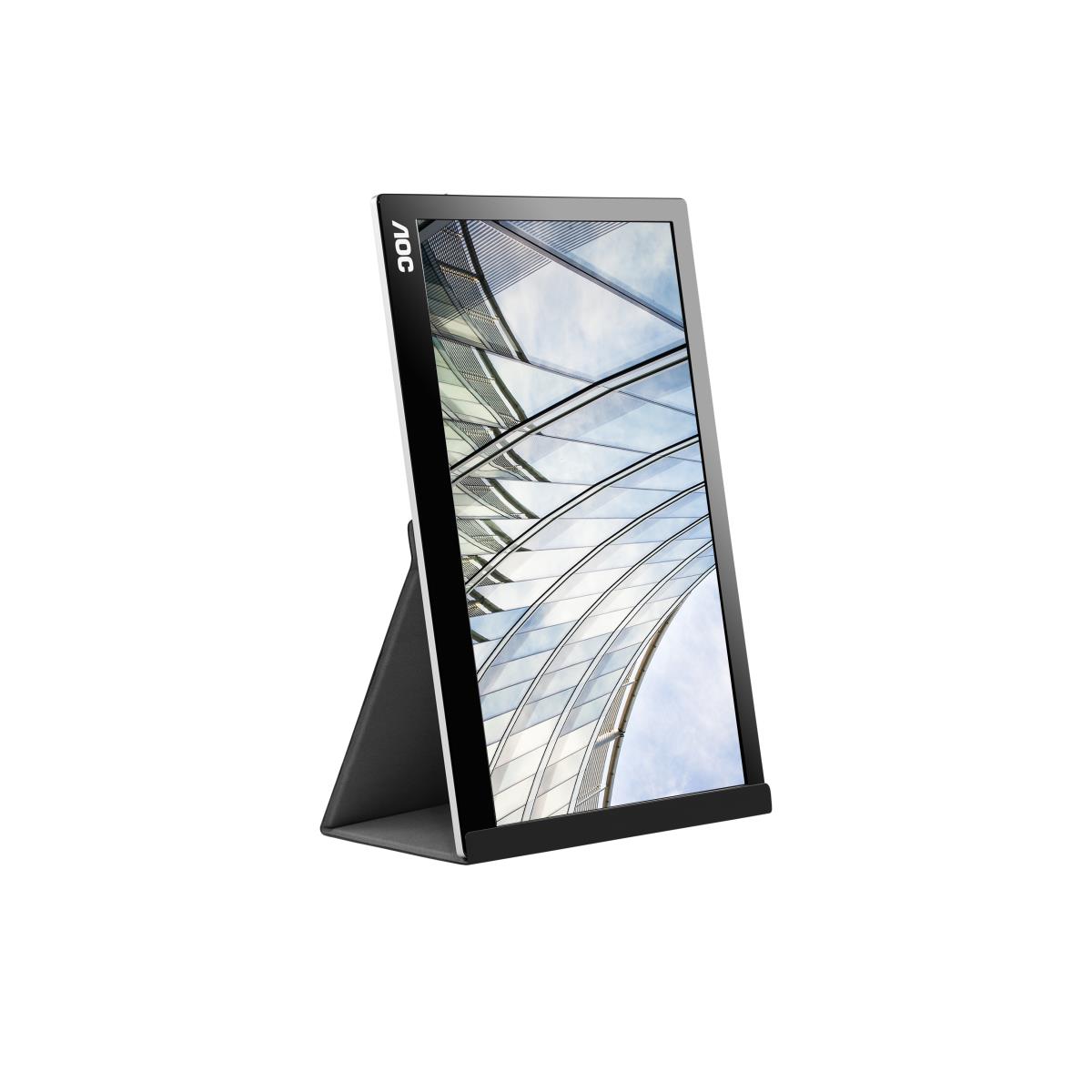

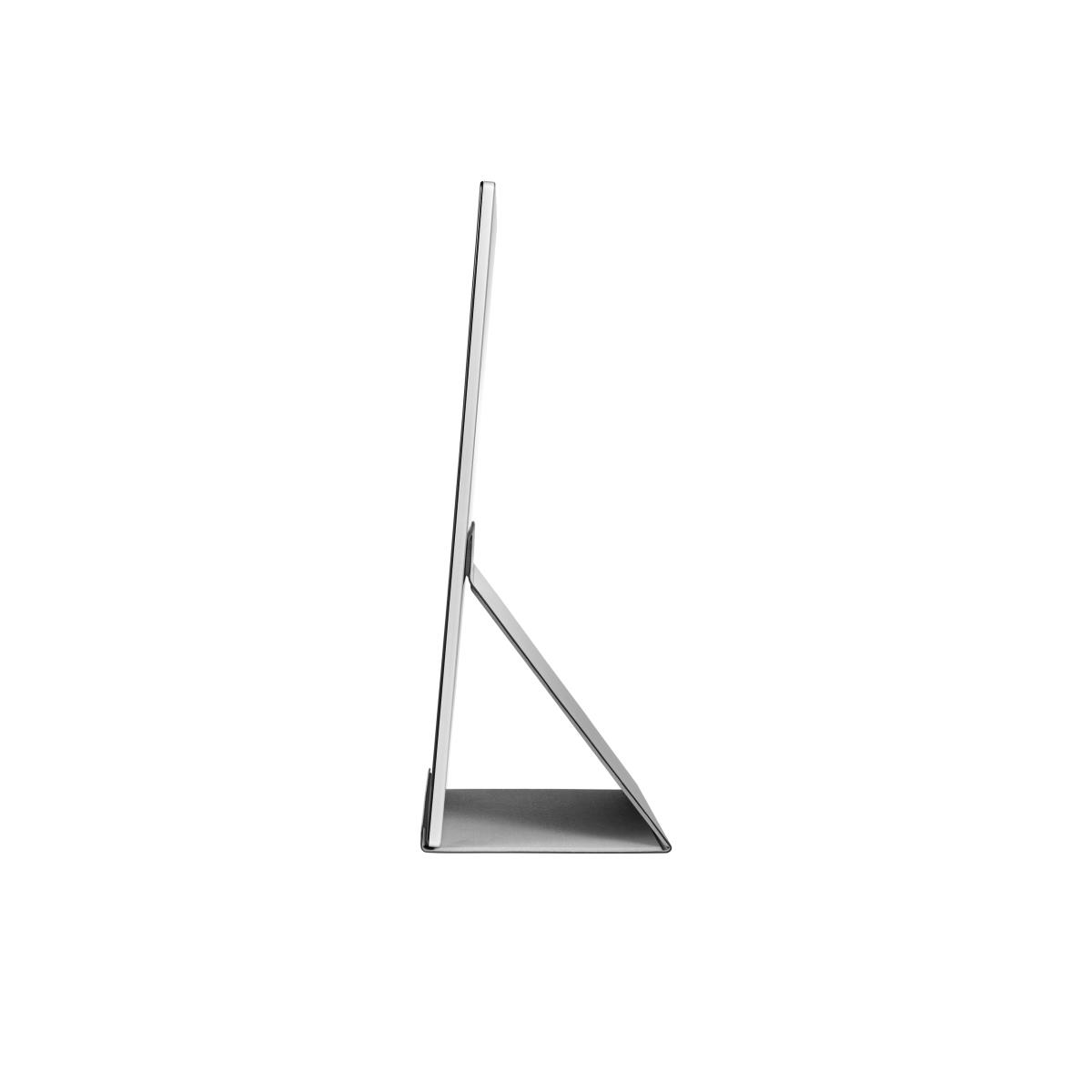

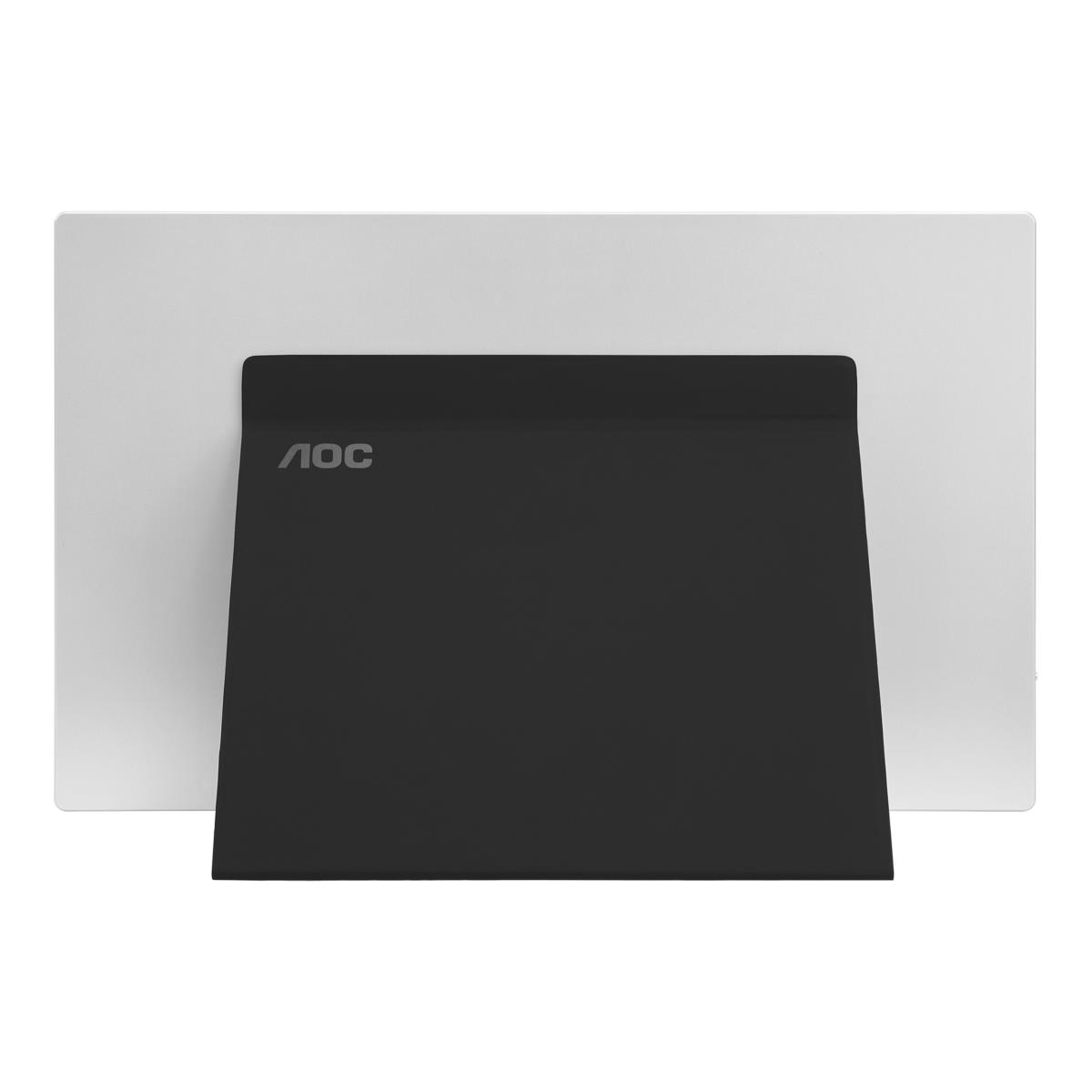

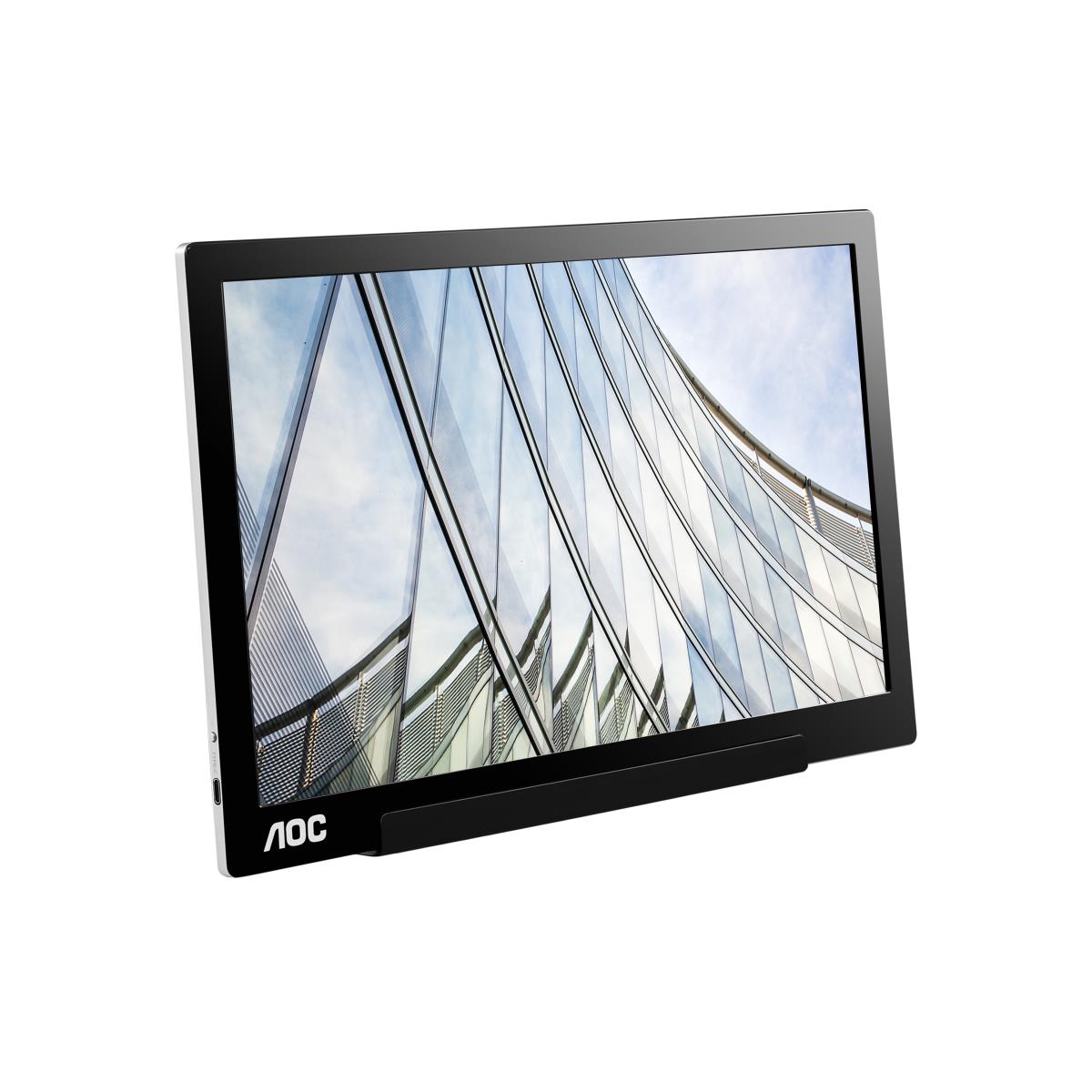

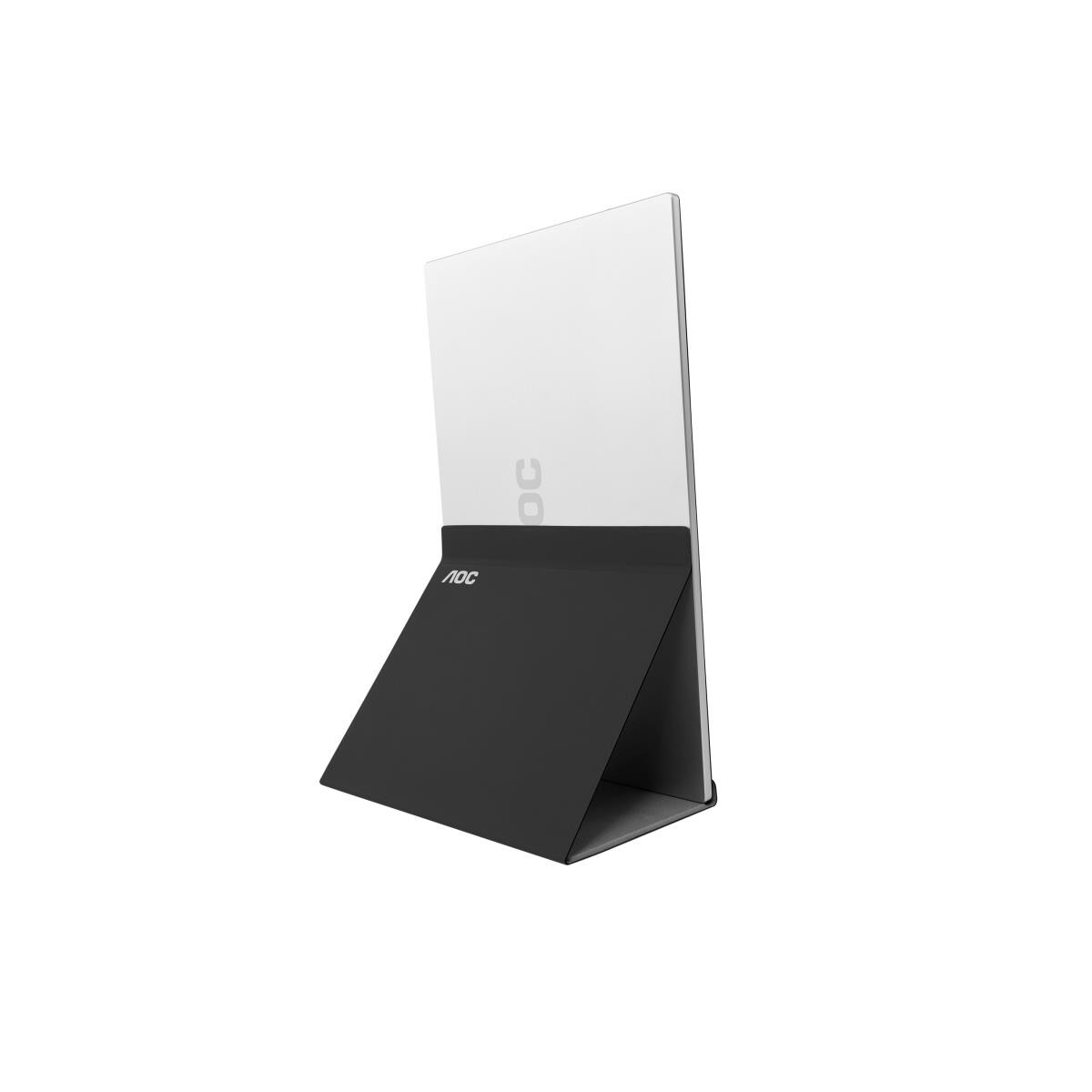

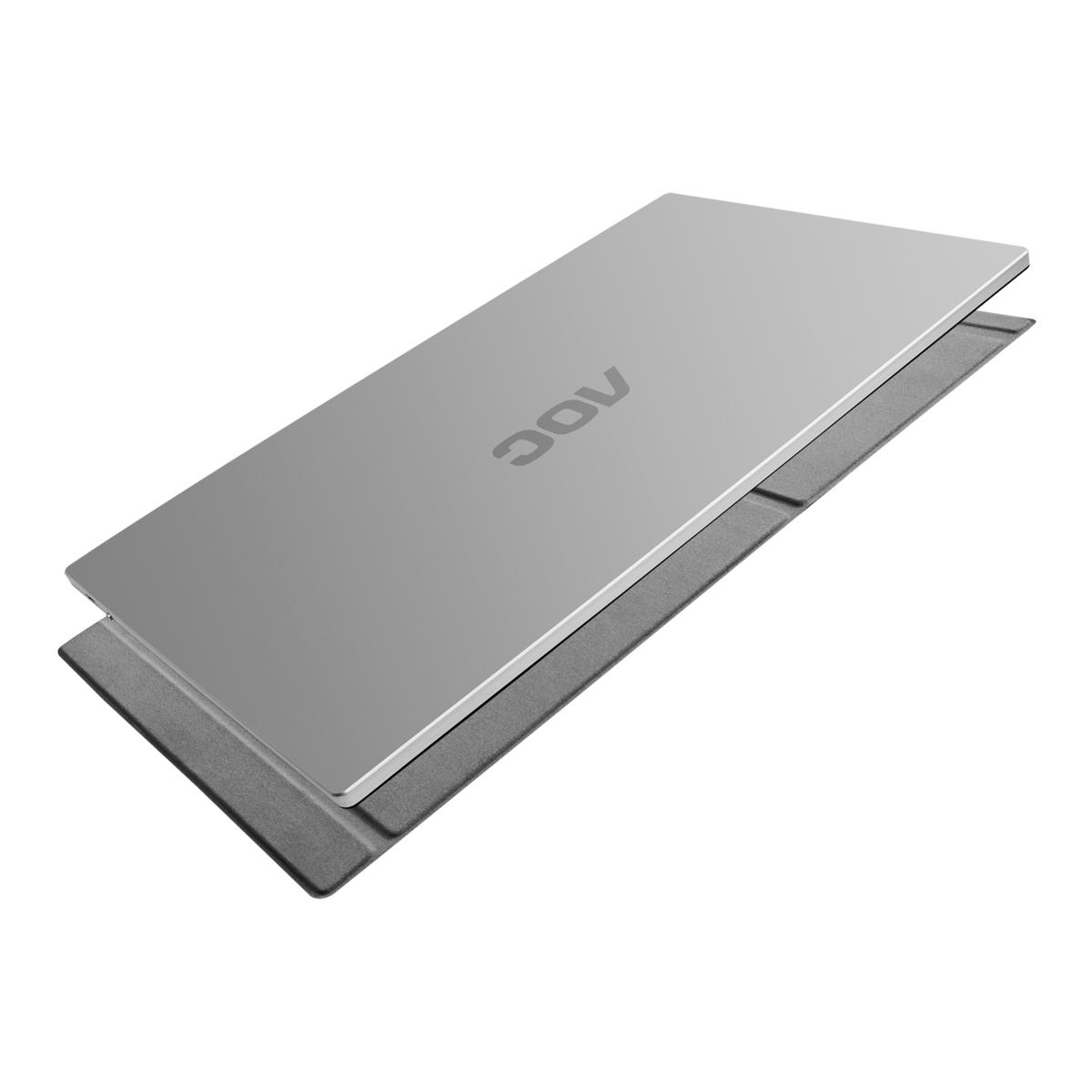

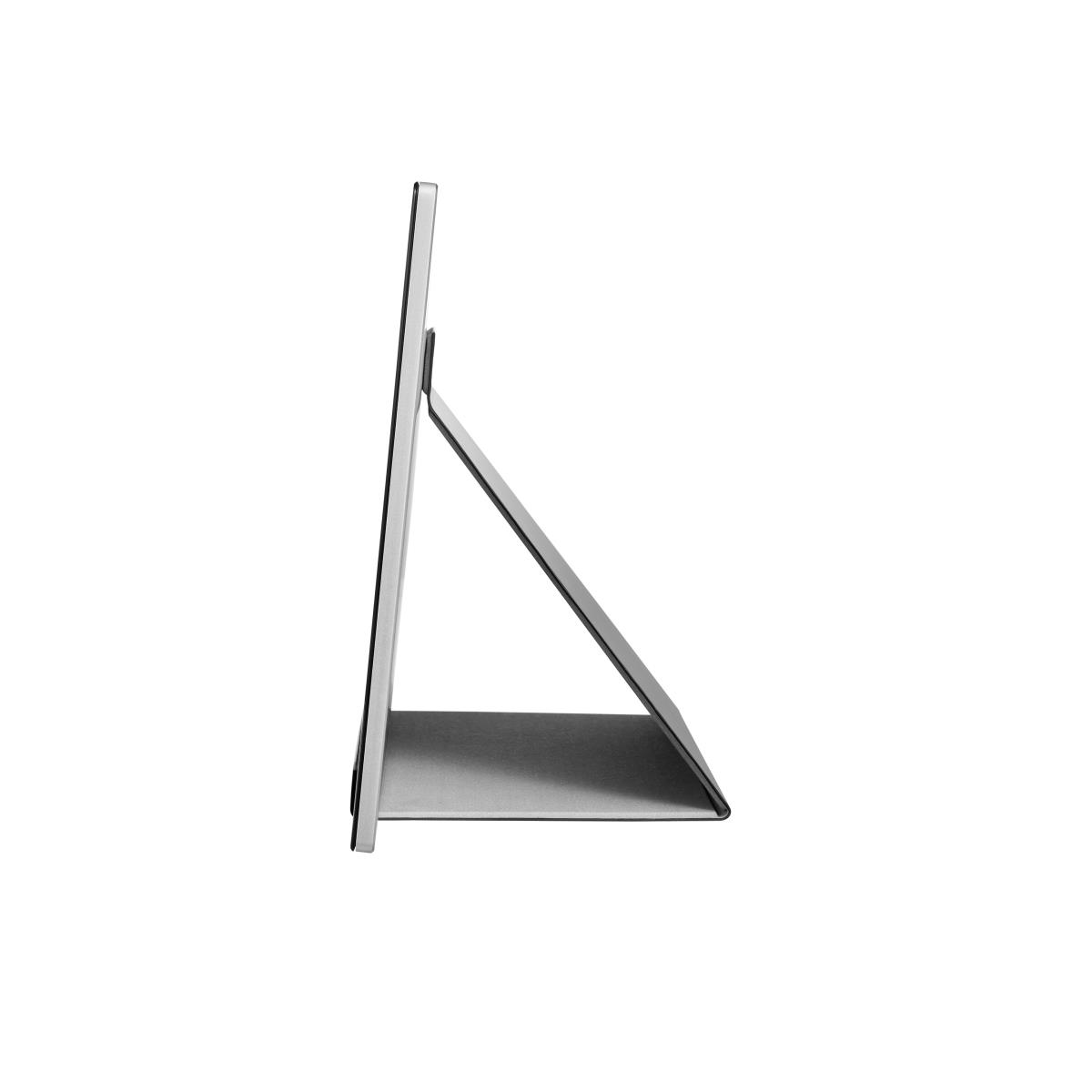

The latest USB-C powered portable display from AOC, I1601FWUX boasts a vivid 15.6” IPS display with wide viewing angles (160/160°) and 5 ms GtG. Includes smart cover and auto-pivot mode.

Display

Display diagonal

39.6 cm (15.6")

Display brightness (typical)

220 cd/m²

Display resolution

1920 x 1080 pixels

Native aspect ratio

16:9

Response time

5 ms

HD type

Full HD

Display technology

LED

Backlight type

W-LED

Screen shape

Flat

Supported graphics resolutions

1920 x 1080 (HD 1080)

Aspect ratio

16:9

Contrast ratio (typical)

700:1

Contrast ratio (dynamic)

100000000:1

Maximum refresh rate

60 Hz

Viewing angle, horizontal

160°

Viewing angle, vertical

160°

Display number of colours

16.78 million colours

3D

N

Panel type

IPS

Pixel pitch

0.179 x 0.179 mm

Horizontal scan range

30 - 83 kHz

Vertical scan range

50 - 76 Hz

Viewable size, horizontal

34.4 cm

Viewable size, vertical

19.4 cm

Colour depth

6 bit

Performance

NVIDIA G-SYNC

N

AMD FreeSync

N

Low Blue Light technology

Y

Multimedia

Built-in speaker(s)

N

Built-in camera

N

Design

Market positioning

Home

Product colour

Black

Heavy metals free

Hg (mercury)

Ports & interfaces

Built-in USB hub

Y

USB upstream port type

USB Type-C

USB Type-C downstream ports quantity

1

USB Type-C DisplayPort Alternate Mode

Y

DVI port

N

Ergonomics

Cable lock slot

N

Height adjustment

N

Pivot

Y

Tiltable

Y

Tilt angle range

-5 - 25°

Power

Energy efficiency class (SDR)

B

Energy consumption (SDR) per 1000 hours

5 kWh

Power consumption (typical)

8 W

Power consumption (standby)

0.5 W

Power consumption (max)

23.5 W

External power adapter

N

Energy efficiency scale

A to G

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-25 - 55 °C

Operating relative humidity (H-H)

10 - 85%

Storage relative humidity (H-H)

5 - 93%

Operating altitude

0 - 5000 m

Non-operating altitude

5000 - 12192 m

Sustainability

Sustainability certificates

RoHS, EPEAT Silver, ENERGY STAR

Weight & dimensions

Width (with stand)

376.2 mm

Depth (with stand)

8.5 mm

Height (with stand)

235 mm

Weight (with stand)

824 g

Width (without stand)

37.6 cm

Packaging data

Cables included

USB Type-C

USB cable length

1.8 m

Quick start guide

Y

Package width

442 mm

Package depth

84 mm

Package height

295 mm

Package weight

1.57 kg

Package type

Box

Other features

TV tuner integrated

N

Recyclable packaging material

100%

Bezel thickness type

Normal
