Extended Ethernet Over Vdsl2 Bnc To 10/100/1000t

Introduction

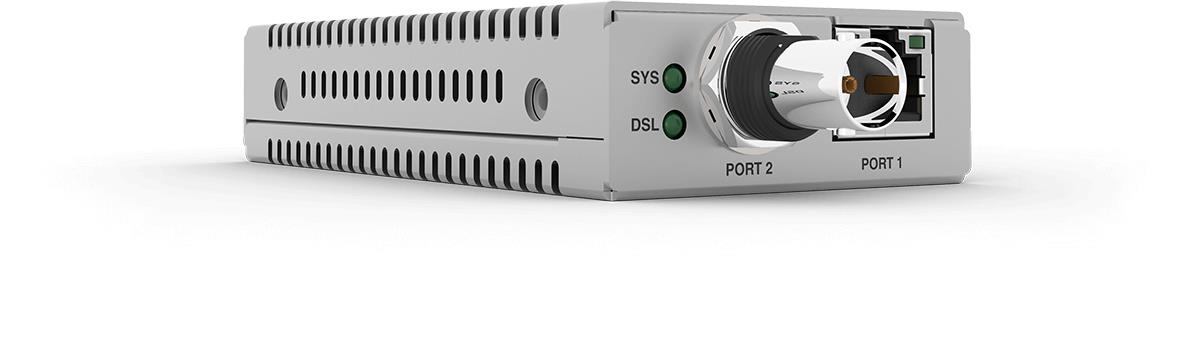

Used as a pair, two Allied Telesis MMC6006 units provide up to 300Mpbs total bandwidth over coax cabling, at distances up to 3 km, to provide the ideal solution for data over coax.

Network

Maximum data transfer rate

1000 Mbit/s

Ethernet interface type

Fast Ethernet, Gigabit Ethernet

Ethernet LAN data rates

10,100,1000 Mbit/s

Auto MDI/MDI-X

Y

Auto-negotiation

Y

Duplex system

Full, Half

Modulation

DMT

Ports & interfaces

Connectivity technology

Wired

Ethernet LAN (RJ-45) ports

1

BNC ports quantity

1

DC-in jack

Y

Performance

Maximum transfer distance

3000 m

Design

Internal

N

LED indicators

Activity, LAN, Link, System

Product colour

Grey

Country of origin

China

Certification

UL 1950 CSA EN 55022 class B EN 60950 (TUV) EN 50082-1

Power

Input voltage

120 V

AC input frequency

60 Hz

Output voltage

12 V

Output current

0.3 A

Power consumption (typical)

2 W

Weight & dimensions

Width

50.8 mm

Depth

99.1 mm

Height

20.3 mm

Weight

200 g

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-30 - 70 °C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%

Operating altitude

0 - 3000 m

Packaging content

AC adapter included

Y
