Adderlink Av 101r Receiver Unit

Introduction

TheAdderLink AV Seriesis a range of audio visual extenders delivering high video resolutions and superb quality audio up to 300m using standard CATx cable (x=5,5e,6,7).
Designed for use in Digital Signage applications, the innovative design allows for flexible distribution that can grow in line with project developments and ensures direct delivery of crystal clear communication to consumers at the point of decision. TheAdderLink AV Seriesavoids the prohibitive costs of fibre optic cabling, displays with built in CPUs or locating a CPU next to each screen.Features:
- Extends video and audio across a single CATx cable
- Extra fine video quality at resolutions up to 1920x1080 at 200m and 1280 x 1024 at 300m
- High fidelity clickless digital audio (16bit, 44.1 kHz, stereo)
- Fine, independent sharpness and brightness control
-DDC support
- Integrated state of the art 300MHz DeSkew with 62ns full scale & 2ns granularity (AV101R only)
- Feed through / cascade port at transmitter
- Dual video and audio outputs at receiver
- Use stand alone or rack mount 16 modules across 3U
- Advanced spike suppression circuits for reliability in 'noisy' installations
- All metal construction
- Power / video indication confirms correct operation
Integral DeSkew (ADDERLink AV101R only)
Skew compensation adjustments can be made using the two rotary dials on the AdderLinkAV101Rreceiver unit. The first dial affects the relationship between green and blue colour signals, the second red and green. The cable skew is produced due to wire length differences between different twisted pairs in a CATx cable that arise due to the different twist rates used to reduce signalling cross talk. The amount of cable skew seen depends on the cable type used and the cable length. The AdderLinkAV101Rprovides up to 62ns of DeSkew with a fine 2ns resolution. This means that high-resolution video can be accurately DeSkewed even at long cable distances. The DeSkew supports 300MHz bandwidths, which means that the DeSkew function does not adversely affect the video quality.

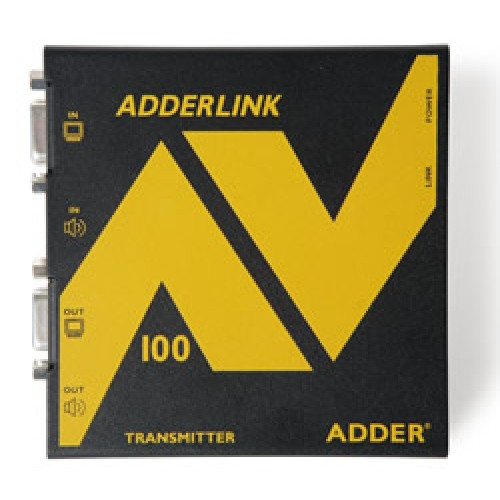

The AdderLink AV Series consists of 4 interchangeable units:ADDERLink AV100T Transmitter
- Sold individually or as a pair (AdderLinkAV100P)
- Extends high-resolution video and high fidelity audio up to 300m
- Local port on transmitter to connect local screen and speakers or for cascading other AdderLinkAV100Ttransmitter unitsADDERLink AV100R Receiver
- Duplicates input from transmitter allowing for 2 video and 2 audio outputs
- Can be used as a receiver up to 300m from AdderLinkAV100Tor AdderLinkAV104TtransmittersADDERLink AV104T Transmitter
- Extends a single high-resolution video and high fidelity audio signal to 4 different receivers
- Local port to connect local screen and speakers or to cascade to other AdderLinkAV104Ttransmitter unitsADDERLink AV101R Receiver Unit
- Duplicates input from transmitter allowing for 2 video and 2 audio outputs
- Integrated skew adjustment allowing the receiver to be located further from the transmitter and/or cope with higher video resolutions
- Can be used as a receiver up to 300m from AdderLinkAV100Tor AdderLinkAV104Ttransmitters
- Has local cascade port allowing for other receivers to be cascaded from the original receiver

Technical details

Harmonized System (HS) code

84733080
