USB-c Or USB-a Dual Monitor Docking Station

Introduction

The AC7049 Dual Monitor Docking Station turns your laptop in a complete working station. All peripherals, e.g. two HDMI screens, a mouse, keyboard and networking cable can be connected to your laptop by using only one USB-C/A connection cable. The docking station adds a Gigabit LAN port, 6 extra USB ports, a microphone and headphones connection to your laptop. The integrated DisplayLink® technology ensures extended monitor view on both Windows and Apple computers. You will save space on your desk by the vertical placement of the Docking Station. A stand, USB-C/A 3.2 Gen1 connection cable and power adapter are included.

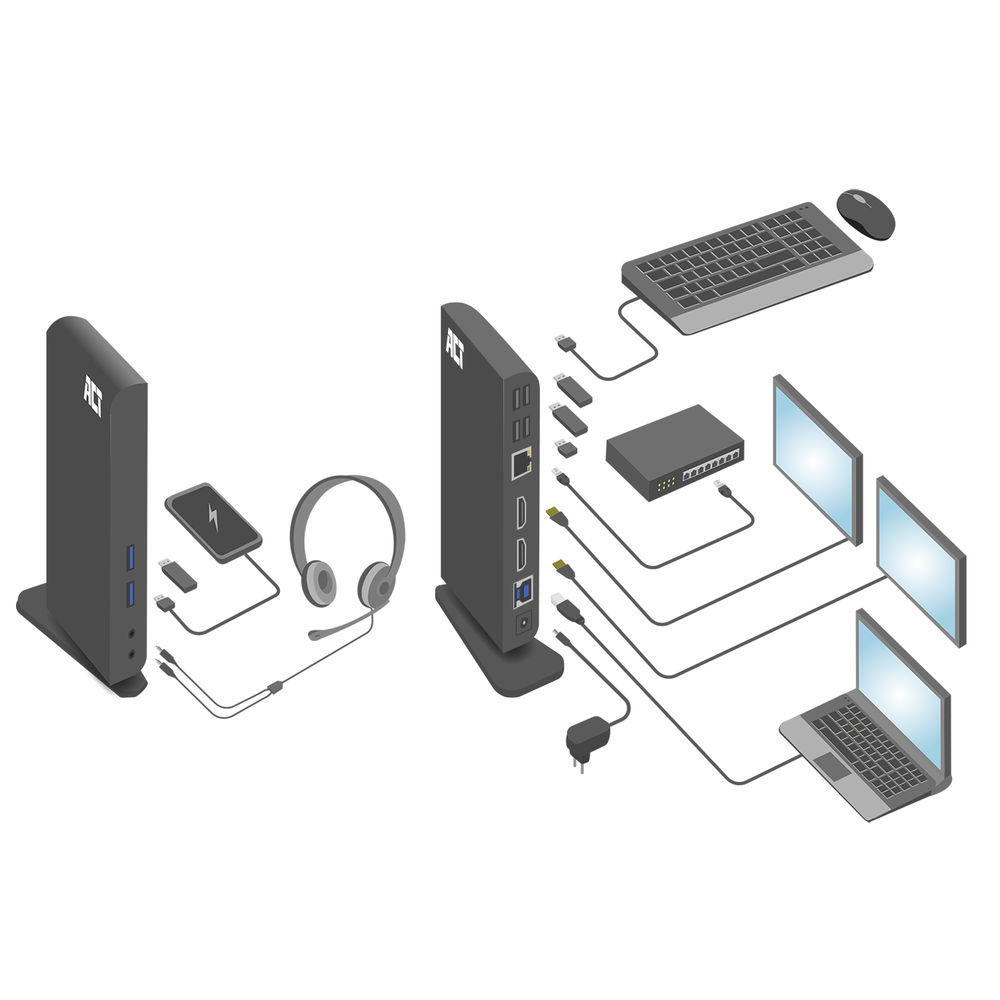

Turn your laptop into a complete working station with only one USB-C/A cable

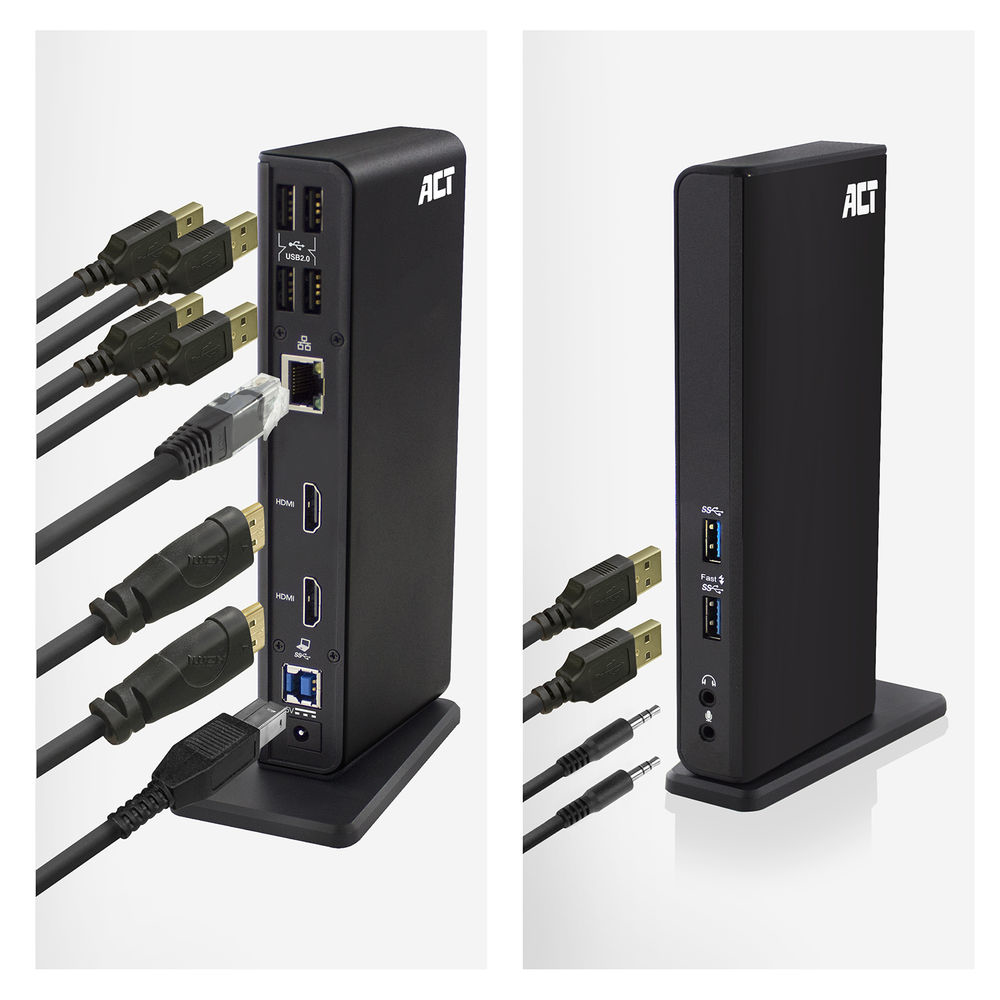

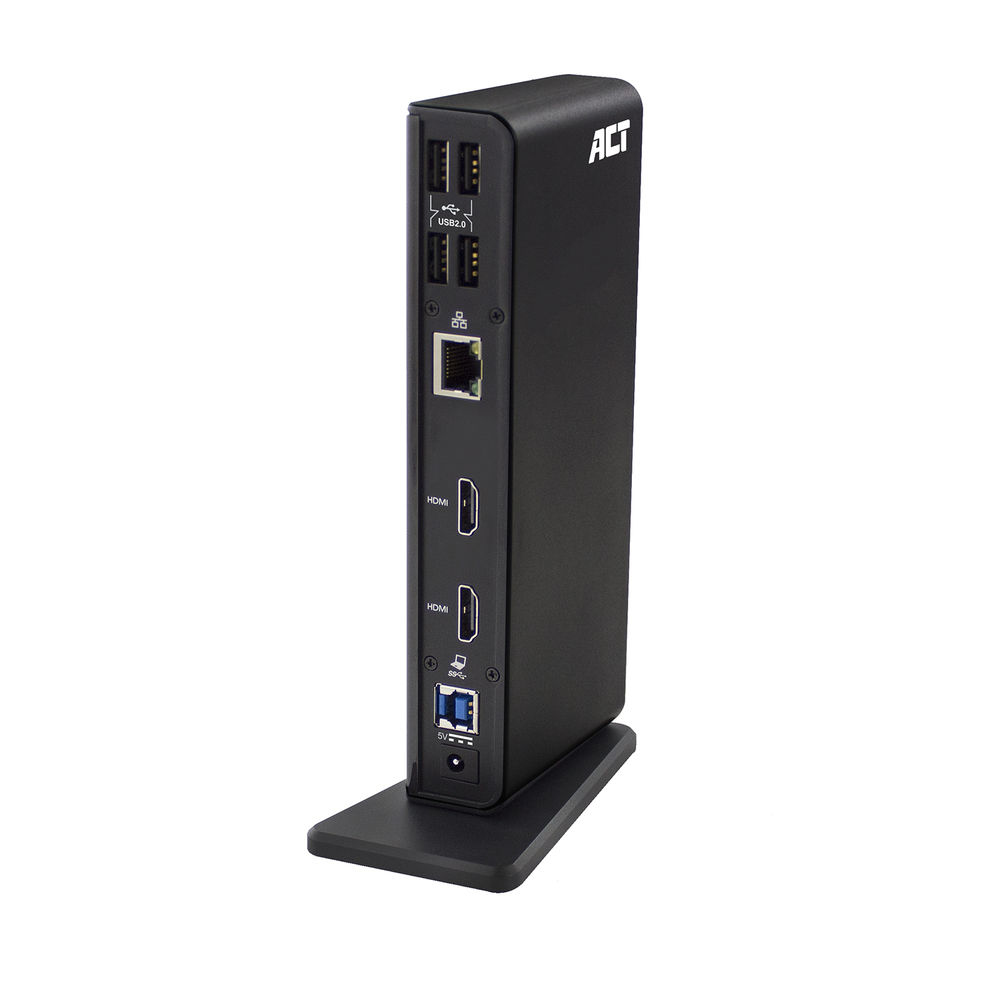

The AC7049 lets you connect up to 2 full HD screens (max. resolution 2048x1152) to your laptop by using the two HDMI ports. The Docking Station has a Gigabit LAN networking port, a microphone and headphones connection. The dock extends your laptop with 6 additional USB ports: two USB-A 3.2 Gen1 ports on the front and four USB-A 2.0 ports on the rear.

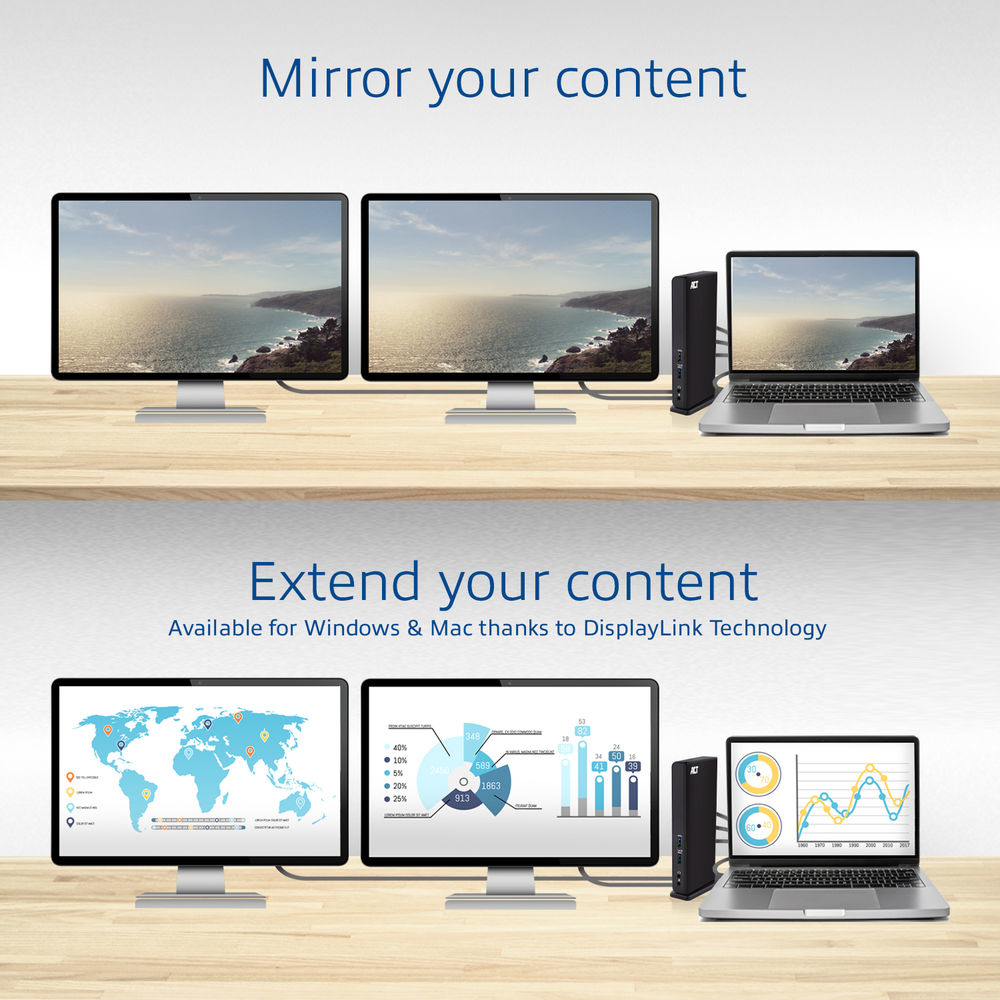

DisplayLink® technology: extended monitor view on MacOS and Windows computers
The docking station includes the DisplayLink® technology. This means that you can extend your desktop with two other screens. In total you will have 3 different monitor views. This technology works with any computer that supports USB-C or USB-A 3.0 (or higher). Ideal for small offices or home offices.

Vertical placement for saving space on your desk
Place the AC7049 Docking Station vertical on your desk and save space. Besides the space-saving feature, all connections are easy accessible. When you prefer a horizontal placement, this is possible as well.

Suitable for laptops with a USB-C or USB-A USB 3.2 Gen1 port

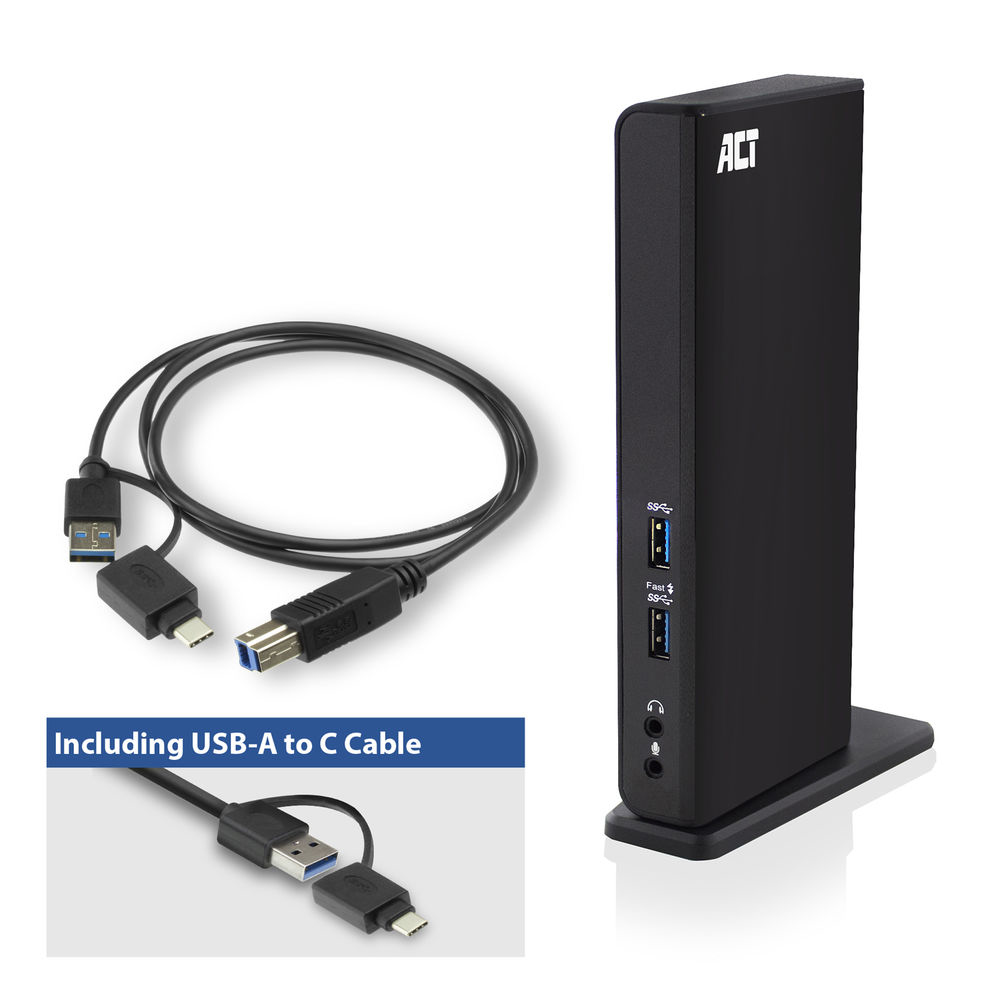

The AC7049 Dual Monitor Docking Station can be used with all laptops that have a USB 3.2 Gen1 port. A USB-C/A connection cable and power supply (to power the docking station) are included.

Charge your smartphone and tablet via the USB charging port
Does your smartphone or tablet need a power boost? Connect your smartphone or tablet to the USB charging port on the Docking Station and charge the battery.

Ports & interfaces

Connectivity technology

Wired

Host interface

USB 3.2 Gen 1 (3.1 Gen 1) Type-C

USB 2.0 ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

HDMI ports quantity

2

HDMI version

1.4

Microphone in

Y

Headphone outputs

1

DC-in jack

Y

Network

Ethernet LAN

Y

Ethernet LAN (RJ-45) ports

1

Ethernet LAN data rates

10,100,1000 Mbit/s

Performance

Card reader integrated

N

Maximum digital resolution

2560 x 1440 pixels

Number of displays supported

2

Product colour

Black

Power

Power source type

DC

Software

Windows operating systems supported

Y

Mac operating systems supported

Y

Packaging data

Quantity per pack

1 pc(s)

Packaging content

AC adapter included

Y

Technical details

Harmonized System (HS) code

84733020
